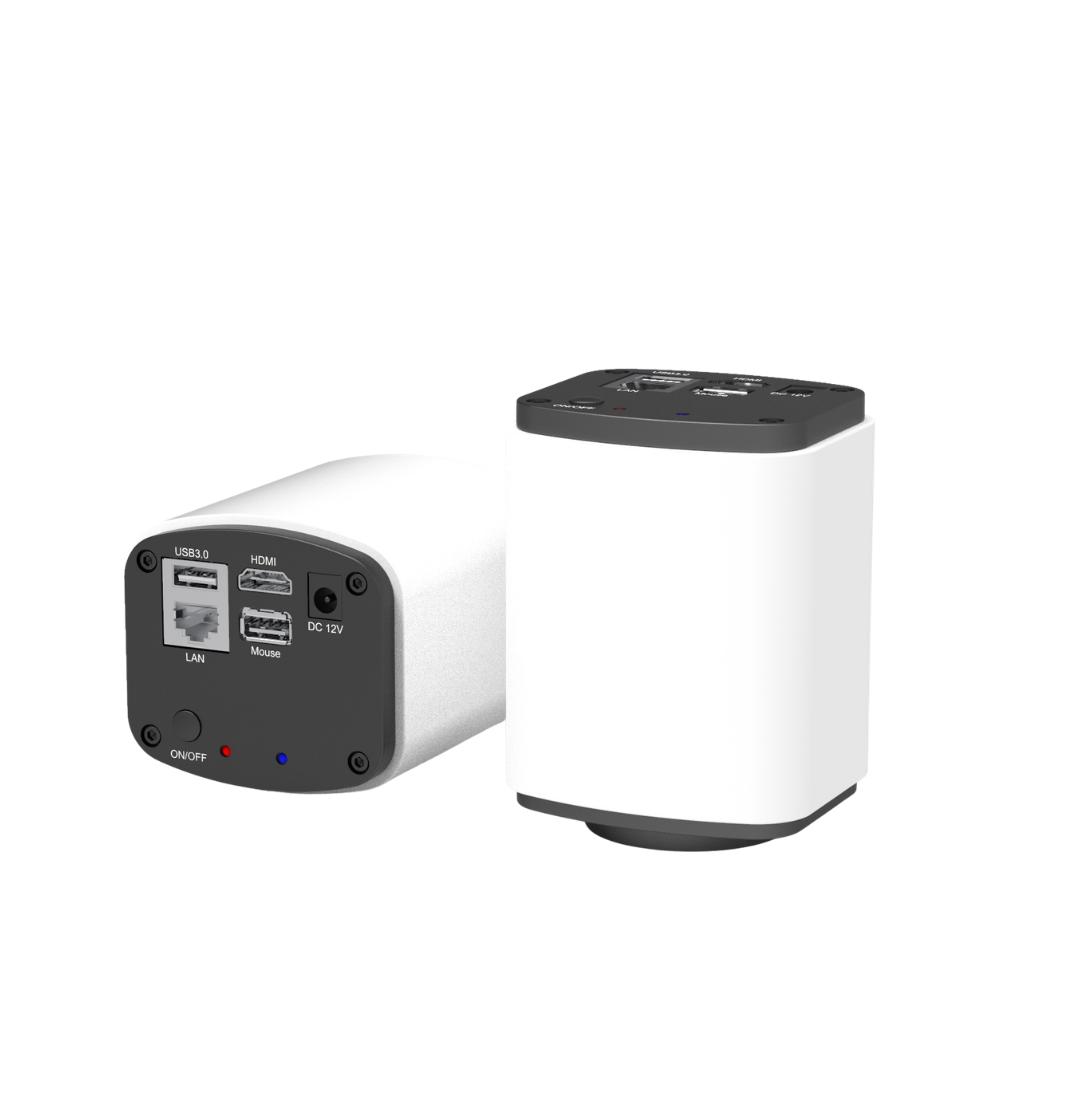

4k Pro USB 3.0, HDMI and LAN Microscope Camera
4k Pro USB 3.0, HDMI and LAN Microscope Camera
Couldn't load pickup availability
The 4K Pro is a dual-channel 4K microscope camera for high-resolution imaging and real-time observation.
Over HDMI, it runs standalone with built-in measurement, controlled with just a mouse, no PC required.
Connect it by USB 3.0 to a PC running Mosaic V3.0, and it adds live image stitching and Extended Depth of Field (EDF) fusion for detailed documentation and analysis.
- Stronger image signal processor. Handles the large data load of 4K imaging, accurately judging exposure in complex lighting and restoring difficult colours like blue, purple and pink, while maintaining up to 30fps at full 4K resolution.
- Live image stitching for large-area microscopy. Builds a large mosaic image in seconds as you move the stage, quickly and smoothly.
- Extended Depth of Field (EDF) for clearer images. As you turn the focus ring across different focal points, the camera generates a clear, large depth-of-field image, quickly and accurately.
Specifications
| Sensor | Sony IMX183C, CMOS |
| Resolution | 8MP (3840 × 2160) |
| Pixel size | 2.9 μm (H) × 2.9 μm (V) |
| Frame rate | HDMI 30fps; USB 3.0 25fps; Ethernet 30fps (all @ 3840 × 2160) |
| Exposure time | 2ms – 10s |
| Exposure control | Auto / manual |
| White balance | Auto / manual |
| File formats | HDMI: JPG, TIFF. USB 3.0 and Ethernet: JPG, PNG, TIFF, DICOM |
| Interface | HDMI (monitor), USB 3.0 (computer or USB drive), LAN (network), USB 2.0 (mouse) |
| Mount | Standard C-mount |
| Onboard software | Embedded, mouse-controlled (HDMI mode) |
| PC software | Mosaic V3.0 |
| Operating system | Windows 7/8/10 (32/64-bit) |
| Power | 2.4 W |
| Dimensions | 105.7 × 78 × 70.8mm |
| Weight | 505g |
| Warranty | 1 year hardware, 3 months software support |
FAQ
Do I need a computer to use this camera?
No. In HDMI mode the built-in software handles viewing and measurement with just a mouse. Connect it to a PC by USB 3.0 for image stitching, EDF and advanced analysis.
Which C-mount adapter do I need?
The camera requires a standard C-mount. Please ensure you purchase the correct C-mount for your microscope model.
Does it support DICOM for medical or pathology records?
Yes, over USB 3.0 alongside JPG, PNG and TIFF. In HDMI mode, files save as JPG or TIFF.
Can I control it remotely?
Yes. Connect the camera to your network and use Mosaic V3.0 on a PC to control all camera features remotely.
Can I get a formal quote?
Yes. Contact us with your institution details and we'll provide one.
