Tucsen

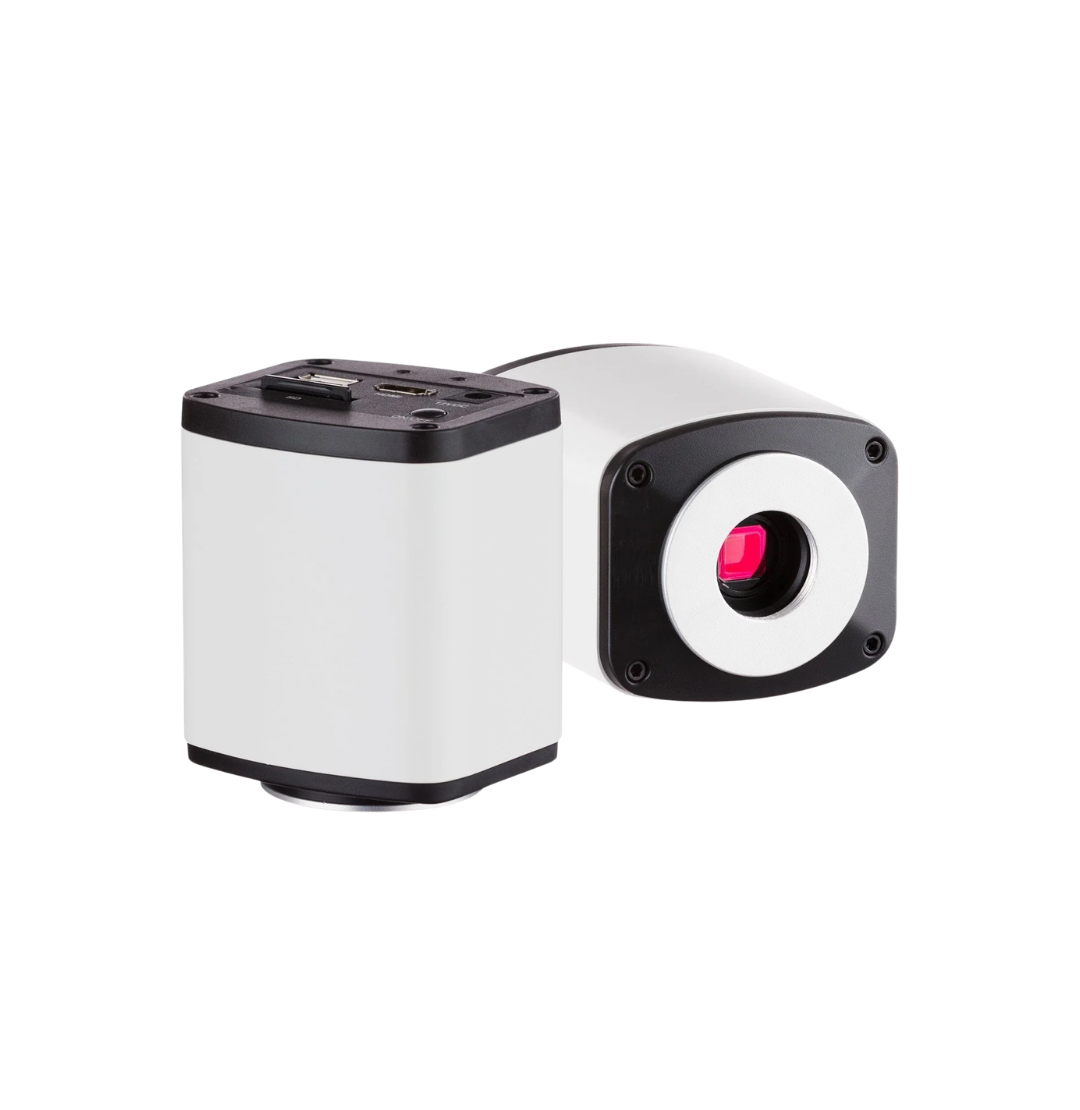

HD Plus HDMI Microscope Camera
HD Plus HDMI Microscope Camera
Couldn't load pickup availability
The HD Plus is a straightforward HDMI camera with accurate colour reproduction built in, along with image capture, processing and a full set of measurement tools. No computer is required to operate it, making it extremely easy to use.
- Quick capture and measurement. Fast image capture and processing, with built-in tools including freehand line, rectangle, polygon, circle, bicircle, angle and point-line distance, in millimetres, centimetres or micrometres to suit different measurement needs.
- Accurate colour reproduction. Colour processing built for a new level of precision, matching the monitor image closely to the eyepiece view.

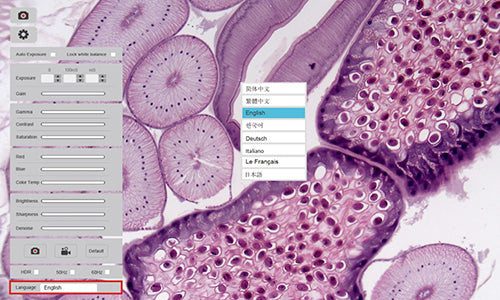

- Multi-language settings. Switch freely between eight languages: English, Simplified Chinese, Traditional Chinese, German, Italian, French, Korean and Japanese.
Specifications
| Sensor | CMOS, colour, 1/2.8" |
| Live view resolution | 2MP (1920 × 1080) |
| Still capture resolution | 6MP (3264 × 1836) |
| Frame rate | 30fps (HDMI); 30fps (USB 2.0) |
| Video recording | 30fps to PC; 30fps to SD card |
| Exposure time | 1ms – 10s |
| Exposure control | Auto / manual |
| White balance | Auto / manual |
| Image settings | Gamma, gain, WDR, noise reduction |
| File formats | HDMI: JPG/TIF; USB: TIFF/JPG/PNG/DICOM |
| Interface | HDMI, USB 2.0, SD card |
| Mount | Standard C-mount |
| Onboard software | Built-in (Cloud 1.0), mouse-controlled measurement |
| PC software | Mosaic V3.0 |
| Operating system | Windows 7/8/10 (stitching requires 64-bit) |
| Power | 3W |
| Dimensions | 90.7 × 78 × 70.8mm |
| Weight | 400g |
| Optional accessory | 11.6" 1080p Retina Screen |
| Warranty | 1 year hardware, 3 month software support |
FAQ
Do I need a computer to use this camera?
No. The built-in software handles live viewing, capture and measurement over HDMI with just a mouse. Connect it to a PC running Mosaic V3.0 for stitching, EDF and reporting.
Which C-mount adapter do I need?
The camera requires a standard C-mount adaptor. Please ensure you purchase the correct C-mount for your microscope model.
Is this suitable for fluorescence imaging?
It handles low light with exposures up to 10 seconds, plus gain and noise reduction. For 4K resolution and network features, see the 4K Pro.
Can I connect a monitor?
Yes. Any HDMI display works, and an optional 11.6" 1080p Retina Screen is available.
Can I get a formal quote?
Yes. Contact us with your institution details and we'll provide one.
